ROTARY JOINT


picture 1.

X3 N A D F G h H L M O V

[kg]

1 3/4˝ R 1/2˝ 82 40 72 40 40 145 75 11 7 2,4
1M M20x1,5
2 R 3/4˝ 50 155 2,5
2M M24x1,5
3 1 1/ 4˝ R 1˝ 108 55 90 50 54 205 100 13 8 5,3
3M M33x2
4 1 1/2˝ R 1 1/ 4˝ 60 210 5,4
4M M42x2
5 R 1 1/2˝ 138 65 100 68 74 250 125 17 10 11,9
5M M48x2
6 2 1/2˝ R 2˝ 70 260 12,3
6M M60x2
7 R 2˝ 165 75 115 82 85 275 135 21 10 15,8
7M M60x2
8 3 1/2˝ R 2˝ 80 285 16,6
8M M60x2




picture 2.

X3 N A B C D E F G h M O P V

[kg]

1 3/4˝ R 1/2˝ R 1/2˝ 1/ 4˝ 82 113 40 72 40 75 11 R 1/ 4˝ 7 2,85
1M M20x1,5 M16x1,5
2 R 3/4˝ R 1/2˝ 3/8˝ 50 R 3/8˝ 2,90
2M M24x1,5 M20x1,5
3 1 1/ 4˝ R 1˝ R 1/2˝ 1/2˝ 108 154 55 90 50 100 13 R 1/2˝ 8 5,8
3M M33x2 M20x1,5
4 1 1/2˝ R 1 1/ 4˝ R 3/4˝ 3/4˝ 60 R 3/4˝ 5,9
4M M42x2 M24x1,5
5 R 1 1/2˝ R 1˝ 138 198 65 100 68 125 17 R 1˝ 10 9,6
5M M48x2 M42x2
6 2 1/2˝ R 2˝ R 1 1/ 4˝ 1 1/ 4˝ 70 R 1 1/ 4˝ 9,75
6M M60x2 M42x2
7 R 2˝ R 1 1/2˝ 1 1/2˝ 165 213 75 115 82 135 21 R 1 1/2˝ 10 14,7
7M M60x2 M48x2
8 3 1/2˝ R 2˝ R 2˝ 80 R 2˝ 14,9
8M M60x2 M60x2



picture 3.

X3 N A B C d D E F G h l1 l2 M O V [kg]
1 ne proizvodi se
1M
2 R 3/4˝ R 1/2˝ 3/8˝ 16,5 82 122 50 72 40 22 55 67 11 7 3,2
2M M24x1,5 M20x1,5
3 1 1/ 4˝ R 1˝ R 1/2˝ 1/2˝ 20,5 108 164 55 90 50 35 80 92 13 8 6,3
3M M33x2 M20x1,5
4 1 1/2˝ R 1 1/ 4˝ R 3/4˝ ľ˝ 26 60 6,4
4M M42x2 M24x1,5
5 R 1 1/2˝ R 1˝ 33 138 210 65 100 68 35 100 117 17 10 13,2
5M M48x2 M33x2
6 2 1/2˝ R 2˝ R 1 1/ 4˝ 1 1/ 4˝ 41,5 70 13,4
6M M60x2 M42x2
7 R 2˝ R 1 1/2˝ 1 1/2˝ 47,5 165 230 75 115 82 40 105 127 21 10 18,7
7M M60x2 M48x2
8 3 1/2˝ R 2˝ R 2˝ 59,5 80 19,8
8M M60x2 M60x2

Service:

Rotary joint (ZG) is designed to make possible for rotary parts of the machine to be supplied with water, steam or hot oil from existing pipeline, without any leakage.


Type:

- ZG.J – one-way(sl. 1)

- ZG.D – two - way with stationary internal pipe (C)sl. 2)

-- ZG.O – two – way with rotary internal pipe (C)sl. 3)


Joint: X4 (sl. 4)

- X4 = 1 – thread right hand
- X4 = 2 – thread left hand
- X4 = 3 – flange
- by flexible hose


Body fixing (D):
- by stop rod in body lugs (O)

Parts material:
-  body (D):
    cast iron (X2 = S)
   ductile iron (X2 = E)
- nipple (N): ductile iron
- seal rings: graphite-Teflon
- spring: stainless steel

Internal pipe (C):
- not included

Extra delivery:
- On buyer’s special request, other versions are possible.

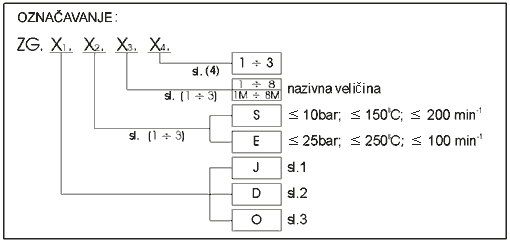

Coding:
(sl.5)


picture 4.

  3 1 i 2
X4

  N d a b S T d1 n [kg] K l n1
1 3/4˝ 26,5 10 10 80 60 11 4,0 0,33 R 3/4˝ 18 3,6
1M
2 32,5 10 12 90 65 13 4,5 0,48 R 1˝ 22 4,0
2M
3 1 1/4˝ 41,5 12 14 115 80 13 5,0 0,95 R 1 1/4˝ 25 4,5
3M
4 1 1/2˝ 47,5 12 14 120 90 13 5,6 1,02 R 1 1/2˝ 28 4,5
4M
5 59,5 15 16 145 110 17 6,3 1,65 R 2˝ 28 5,0
5M
6 2 1/2˝ 75,5 18 18 165 135 17 7,1 2,34 R 2 1/2˝ 30 5,6
6M
7 88,5 20 18 180 150 17 6,3 2,69 R 3˝ 30 5,6
7M
8 3 1/2˝ 100,5 25 20 190 160 17 6,3 3,21 R 3 1/2˝ 35 6,3
8M




picture 5.
